Aircraft :
Sorry for the inactivity! I'm back!!!

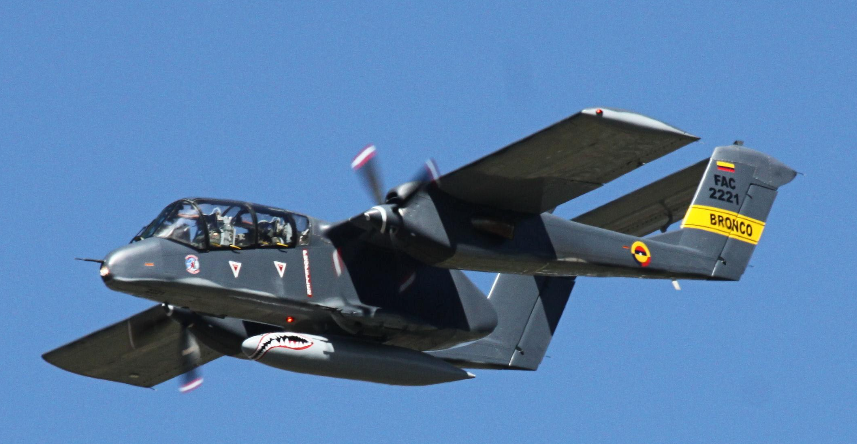

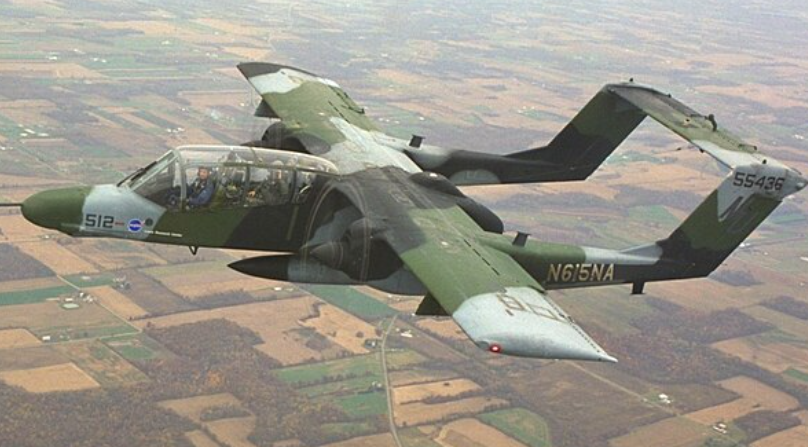

The North American Rockwell OV-10 Bronco is an American twin-turboprop light attack and observation aircraft. It was developed in the 1960s as a special aircraft for counter-insurgency (COIN) combat, and one of its primary missions was as a forward air control (FAC) aircraft. It can carry up to 3,200 lb (1,450 kg) of external munitions and internal loads such as paratroopers or stretchers, and can loiter for three or more hours
Desing:
The OV-10 has a central nacelle containing pilots and cargo, and twin booms containing twin turboprop engines. The visually distinctive feature of the aircraft is the combination of the twin booms, with the horizontal stabilizer that connects them.
The aircraft's design supported effective operations from forward bases. The OV-10 can perform short takeoffs and landings, including on aircraft carriers and large-deck amphibious assault ships[6] without using catapults or arresting wires. Further, the OV-10 was designed to take off and land on unimproved sites. Repairs could be made with ordinary tools. No ground equipment was required to start the engines. If necessary, the engines could operate on high-octane automobile fuel with only a slight loss of power.[7]
The aircraft had responsive handling and could fly for 5 1/2 hours with external fuel tanks.[8] The cockpit had extremely good visibility for a tandem pilot and co-pilot, provided by a wrap-around "greenhouse" that was wider than the fuselage. North American Rockwell custom ejection seats were standard,[9] with many successful ejections during service.[10] With the second seat removed, it can carry 3,200 pounds (1,500 kg) of cargo, five paratroopers, or two litter patients and an attendant. Empty weight was 6,969 pounds (3,161 kg). Normal operating fueled weight with two crew was 9,908 pounds (4,494 kg). Maximum takeoff weight was 14,446 pounds (6,553 kg).
The bottom of the fuselage bore sponsons or "stub wings" that improved flight performance by decreasing aerodynamic drag underneath the fuselage. The sponsons were mounted horizontally on the prototype. Testing caused them to be redesigned for production aircraft; the downward angle of the sponsons on production models ensured that stores carried on the sponsons jettisoned cleanly. Normally, four 7.62 mm (.308 in) M60C machine guns were carried on the sponsons with the M60Cs accessed through a large forward-opening hatch on the top of each sponson. The sponsons also had four racks to carry bombs, pods, or fuel. The wings outboard of the engines contain two additional racks, one per side.
Racked armament in the Vietnam War was usually seven-shot 2.75 in (70 mm) rocket pods with white phosphorus marker rounds or high-explosive rockets, or 5 in (127 mm) four-shot Zuni rocket pods. Bombs, ADSIDS air-delivered/para-dropped unattended seismic sensors, Mk-6 battlefield illumination flares, and other stores were also carried.[citation needed]
Operational experience showed some weaknesses in the OV-10's design. It was significantly underpowered, which contributed to crashes in Vietnam in sloping terrain because the pilots could not climb fast enough.[8] While specifications state that the aircraft could reach 26,000 feet (7,900 m), in Vietnam the aircraft could reach only 18,000 feet (5,500 m). Also, no OV-10 pilot survived ditching the aircraft.[7]
Specifications
General Characteristics
- Created On Android
- Wingspan 65.3ft (19.9m)
- Length 65.9ft (20.1m)
- Height 21.6ft (6.6m)
- Empty Weight 13,889lbs (6,300kg)
- Loaded Weight 26,294lbs (11,927kg)
Performance
- Horse Power/Weight Ratio 0.095
- Wing Loading 22.4lbs/ft2 (109.2kg/m2)
- Wing Area 1,176.0ft2 (109.3m2)
- Drag Points 10959
Parts
- Number of Parts 107
- Control Surfaces 8
- Performance Cost 503
