Name: Su-23F-Bis FoggPatch
Type: Personal Concept
Attempt #: 6
Falkenwut Generation Build: 7.5
As per my recent projects, I got the chance to rework and improve on my Su-23 Foggpatch; A custom project of mine that I've been rebuilding frequently to perfect to a shape and design I like.

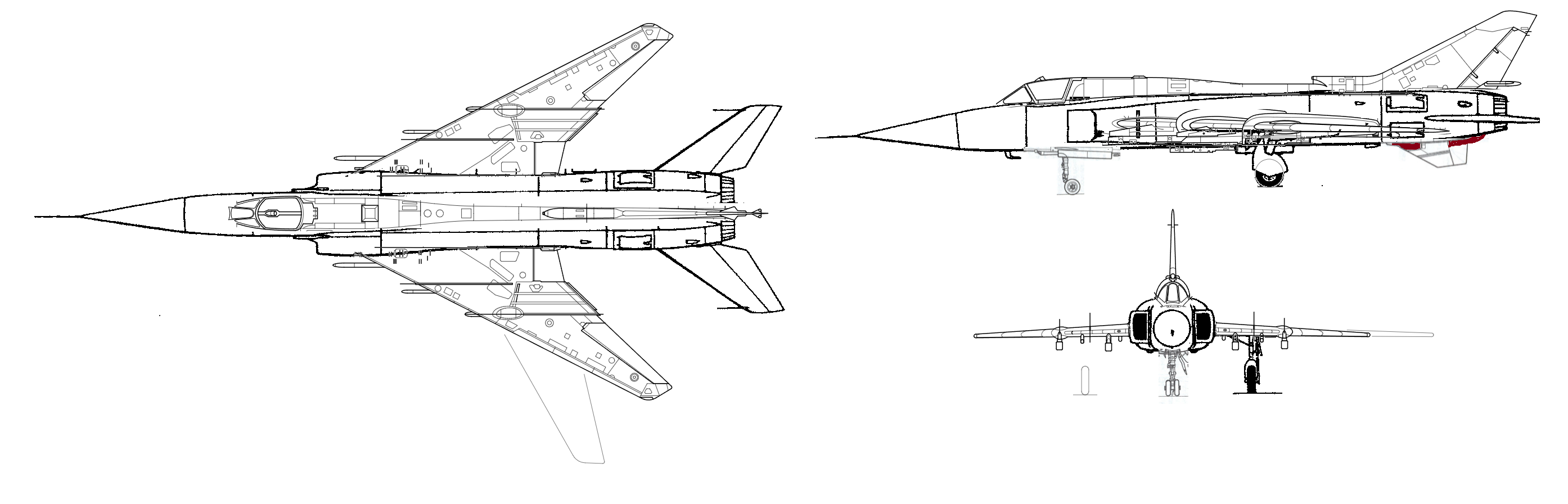

Original Design:
Screens:
Details:
Role: 3rd Generation High Altitude Interceptor converted for multirole use
Intended Origin: Soviet Union
General characteristics:
Crew: 1
Length: 18.3m
Wingspan:13.6 m open, 8.8 m closed
Height: 5.9 m
Wing area: 30.7 m²
Empty weight: 11,009 kg
Gross weight: 15,009 kg
Max takeoff weight: Up to 25,000 kg
Powerplant: 2 × Lyulka AL-21 turbojet engines, 75 kN thrust each dry, 109.8 kN with afterburner
Maximum speed: 2000 km/h at sea level
Slowest Flight speed: 320 km/h
Wing loading: 489.2 kg/m2
Thrust/weight: 1.264
Armament:
Max Loadout weight: 10,000Kg
Hardpoints: 6 totalMissiles:
Up to 6 x R-73 Infrared-guided air-to-air missiles
Up to 4 x R-23 Radar-guided air-to-air missiles
Up to 4 x KH-23 Laser-guided missilesRockets:
Up to 6 x B8M1 rocket pods
Bombs:
Up to 6 x FAB-500 unguided bombs (2 pylons in 2 x MER pylon setup + 2)
Up to 18 x FAB-250 unguided bombs (4 pylons in 4 x MER pylon setup + 2)Other:
Onboard Cannon 1 × 30 mm Gryazev-Shipunov GSh-6-30 rotary cannon
Up to 4 x SPPU-22 gun pods with 2 x Gryazev-Shipunov GSh-23L cannons each
2 x 800 Liter PTB-800 Drop tanks
Features:
Detailed cockpit:
Automatic Swing-Wing control:
Multiple Skins
Hope you guys enjoy it. I'm intending to keep this project going and keep upgrading it as I go, trying to make a realistic simulation as much as possible. I'm happy for any criticism or feedback provided as this keeps my project going.
Special thanks to @asteroidbook345 for correcting me on the NATO code, as this plane was named Fogg.
Action buttons
1 - Master Arm / Cannon pod manual control
2 - Air Brake
3 - Flaps
4 - Drogue Chute
5 - Toggle Auto-swing wing
6 - Jettison Weapons
7 - Canopy & Close swing
8 - Systems On / Off
Specifications
Spotlights
- This craft is curated
General Characteristics
- Created On Windows
- Wingspan 44.7ft (13.6m)
- Length 60.1ft (18.3m)
- Height 19.4ft (5.9m)
- Empty Weight 24,269lbs (11,008kg)
- Loaded Weight 33,132lbs (15,028kg)
Performance
- Power/Weight Ratio 1.263
- Wing Loading 100.2lbs/ft2 (489.2kg/m2)
- Wing Area 330.6ft2 (30.7m2)
- Drag Points 800
Parts
- Number of Parts 867
- Control Surfaces 0
- Performance Cost 3,127
