Boeing Bird of Prey (YF 118G)

26.8k Wibbley  1.1 years ago
Auto Credit Based on WinsWings's 96 Parts Challenge 9.20.23 [CLOSED]

An entry for WinsWings 96 part challenge

I used PlanariaLab's 1 part hud for this plane https://www.simpleplanes.com/a/0dH9ML/1Parts-HUD

Boeing Bird of Prey "YF-118G"

•       Crew: 1

• Length: 46 ft 8 in (14.22 m)

• Wingspan: 22 ft 8 in (6.91 m)

• Height: 9 ft 3 in (2.82 m)

• Wing area: 220 sq ft (20.4 m2) (estimated)

• Max takeoff weight: 7,400 lb (3,356 kg)

• Powerplant: 1 × Pratt & Whitney Canada JT15D-5C , 3,190 lbf (14.2 kN) thrust

Performance

• Maximum speed: 260 kn (299 mph, 482 km/h)

• Service ceiling: 20,000 ft (6,100 m)

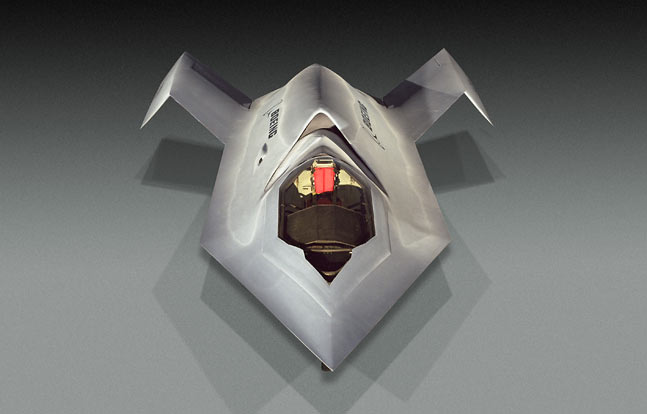

The Boeing Bird of Prey was a black project aircraft, intended to demonstrate stealth technology. It was developed by McDonnell Douglas and Boeing in the 1990s.

The shape is aerodynamically stable enough to be flown without computer correction. Its aerodynamic stability is in part due to lift provided by the chines, as used in other aircraft including the SR-71 Blackbird. This provided lift for the nose in flight. This configuration, which can be stable without a horizontal tailplane and a conventional vertical rudder, is now a standard in later stealth unmanned aerial vehicles such as the X-45 and X-47, tailless aircraft which use drag rudders (asymmetrically used wingtip airbrakes) for yaw control.

The aircraft, which had given the designation "YF-118G" as a cover,  was made public on October 18, 2002.













Spotlights

  • This craft is curated
  • WinsWings 1.1 years ago
  • MAPA 1.1 years ago

General Characteristics

Performance

  • Power/Weight Ratio 2.803
  • Wing Loading 20.2lbs/ft2 (98.4kg/m2)
  • Wing Area 357.8ft2 (33.2m2)
  • Drag Points 3794

Parts

  • Number of Parts 96
  • Control Surfaces 4
  • Performance Cost 540
