Aircraft:

The Shenyang J-8 (NATO reporting name: Finback) is a family of interceptor aircraft developed by the 601 Institute (Shenyang) in the People's Republic of China (PRC). It was conceived in the early 1960s as a low-risk program based on enlarging the Mikoyan-Gurevich MiG-21F, a version of which the PRC was producing as the Chengdu J-7. The original J-8 experienced protracted development due to disruption from the Cultural Revolution; the prototypes first flew in 1969[2] but the design was not finalized until 1979 with the aircraft entering service in 1980

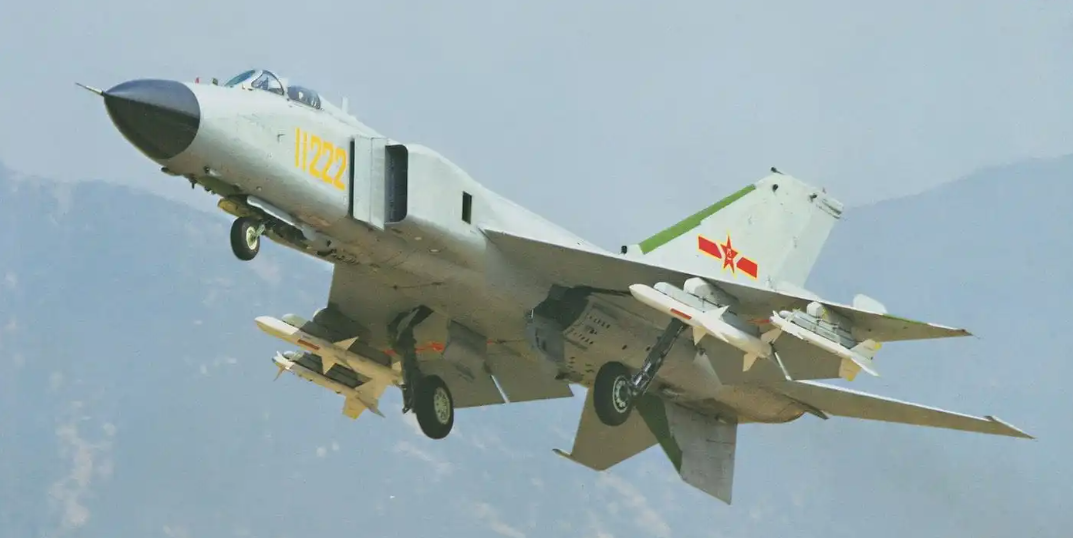

The J-8II/J-8B (NATO reporting name: Finback-B) was a major development of the J-8 and was essentially a new aircraft. The J-8II replaced the distinctive nose air intake[2] with a conventional radome and side air intakes to create room for a modern fire-control radar,[4] and used more powerful engines.[2][4] The aircraft started development in 1982,[4] and was cleared for production and service in 1988.[5] The J-8II was the basis for all later major additions to the J-8 family.

J-8F / J-8B Itself

J-8B

In 1980, Shenyang began investigating improving the J-8 by using ideas embodied by contemporary aircraft like the McDonnell Douglas F-4 Phantom II and the Mikoyan-Gurevich MiG-23. Gu and He Wenzhi began design work on what became the J-8 II (later the J-8B) in 1982.[4]

70% of the J-8's airframe structure and systems were reworked. The nose air intake and its shock cone[2] were replaced with an ogival radome and lateral air intakes to create room for the larger Type 208 pulse-Doppler radar. The number of external hardpoints increased to seven; a single Type 23-III cannon was carried. The aircraft was area ruled and the powerplants replaced by the more powerful WP-13A-II turbojets. The two ventral fins under the tail were replaced by a single larger fin copied from the MiG-23; the fin folded to starboard on the ground for ground clearance. Performance was greatly improved with the higher thrust-to-weight ratio, as was handling. Improvements to manoeuvrability were limited due to the 6.9 g limit. The prototype was completed in March 1984 and made its first flight on 12 June.[4] Production and entry into service was approved in October 1988.[5] The greatest problems were with the avionics, particularly the radar.[14]

The improved J-8 IIB (or J-8B Block 02), fitted with the KLJ-1 (Type 208A) radar and avionics from the J-7C, flew in November 1989 and entered production in 1996.

J-8F

The J-8 III (later the J-8C) was an attempt to upgrade the J-8 II in the early 1990s. The Israeli avionics company Elta Systems was contracted to adapt the EL/M-2034 radar for the aircraft, although ultimately the domestic Type 1471 radar was used. The prototypes flew with WP-13B engines as the intended Liyang WP-14 Kunlun turbojets were under development. The wing had four, rather than two, fences, and a detachable aerial refueling probe was fitted on the starboard side. The J-8 III was certified in 1995 but production was cancelled because the WP-14 remained unavailable.[15]

The J-8C led to the J-8F, which started development in 1999 and first flew in 2000. The latter was equipped with the JL-10 (Type 1473) radar and WP-13B-II turbojets.
