The Mikoyan-Gurevich MiG-15 (DoD designation: Type 14; NATO reporting name: fagot) is a jet fighter that served in the soviet union and under many air forces such as the KPAAF and the PLAAF.
The MiG-15 was one of the first fighters that successfully used swept wings to achieve high speeds that outclassed several other straight wing fighters of the time

Design:

Based off of the rolls-royce nene engine, the RD-45 was the first soviet jet engine to see mass production and to test its capabilities, Mikoyan-Gurevich was ordered to build 2 prototypes for an advanced high Altitude interceptor.

The new design, I-310, had a 35° sweep in wings and tail, with 2 wing fences to improve airflow and 2 ducts which carried intske air around the cockpit and into the engine. It's first flight was 30th December, 1947.

Service:

The first MiG-15s saw combat at the end of the Chinese Civil War, in southern China. On August 19th, 1950 a ROCAF P-38 was shot down, in the first air victory of a MiG-15

MiG-15s mostly saw combat with the north Korean air force during the Korean War under the north Korean, Chinese air force and Soviet air force, although for many years the soviet union denied their involvement in the conflict.

The MiG-15 would also be used extensively by Warsaw pact countries such as Poland and east Germany

Armament:

This replica is armed with
-2x Nr-27
-1x N-37
-2x FAB-100

Controls

AG1: Canopy
AG3: Landing Light
AG4: Lights
AG5: Emergency Jettison all
AG6: Air Brake
AG7: Eject

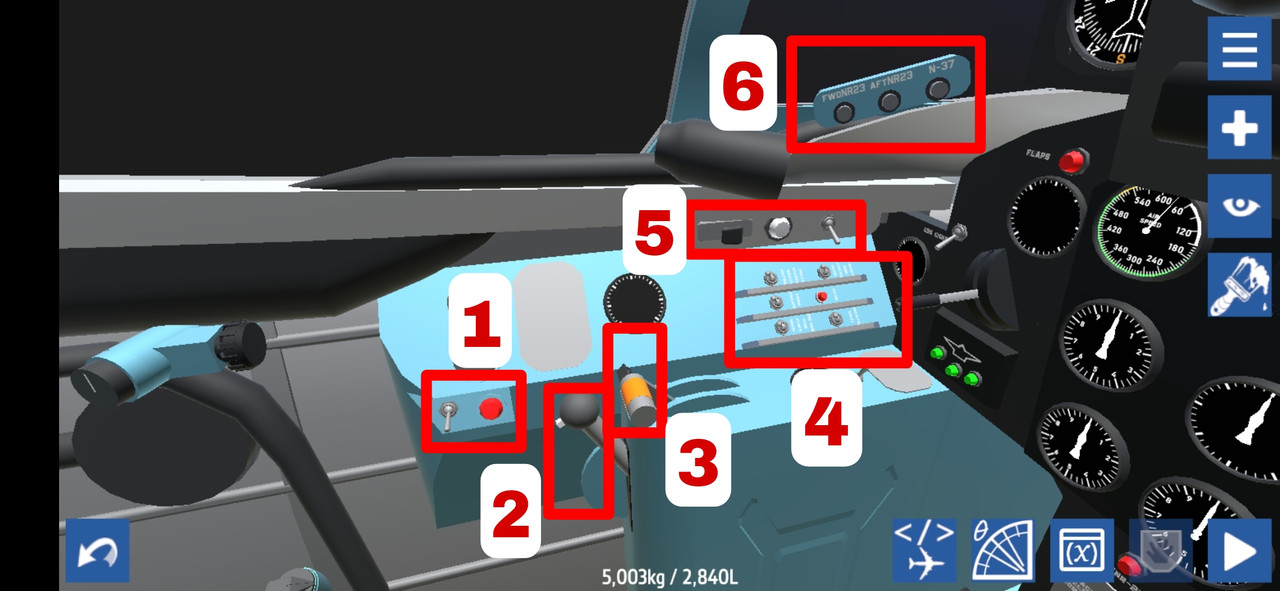

1. Air brake switch and indication light
2.Flap lever
3.Throttle and startup switch cover
4.Left side circuit breaker
5.Trim, indication light and external lights switch
6.Gun switches
7.Landing Light switch

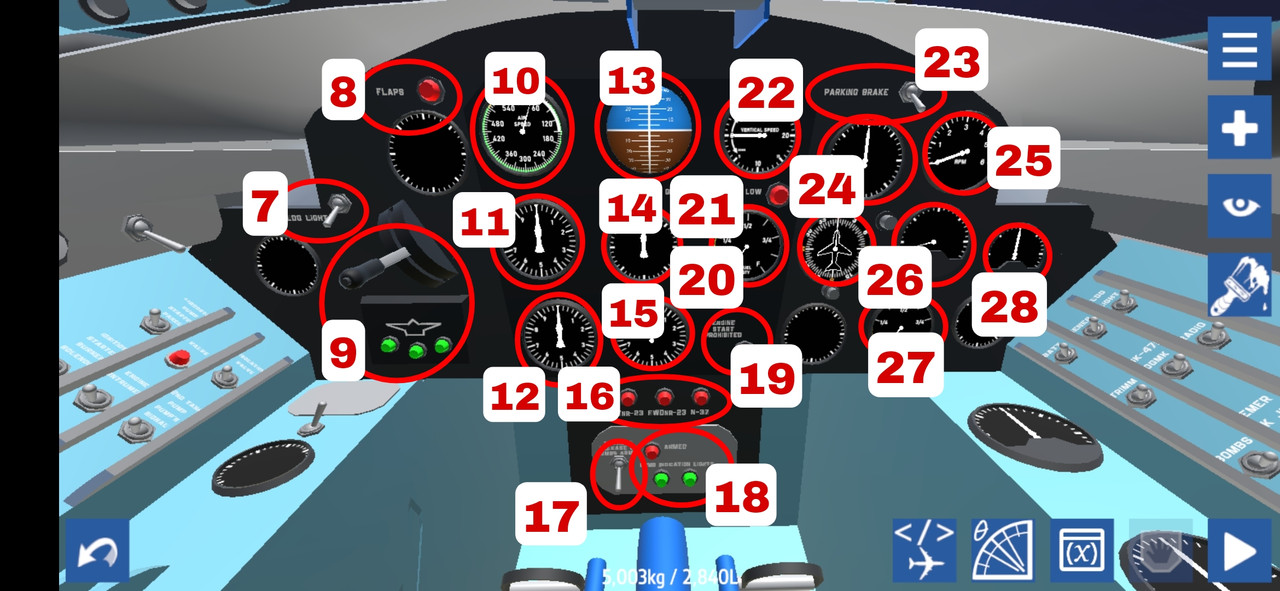

8.Flaps at maximum deflection
9.Landing gear lever and indication lights
10.Airspeed indicator
11.Altimeter
12.Radar altimeter
13.Artificial horizon
14.Clock
15.Mach number indicator
16.Gun indication lights
17.Bombs switch
18.Bombs armed and indication lights
19.Engine start prohibited
20.Fuel contents gauge
21.Fuel low light
22.Vertical speed indicator
23.Parking brake
24.Automatic direction finder
25.Engine RPM
26.Engine temp. (On the left) compass indicator with course indicator and knob
27.Fuel pressure
28.Ammeter

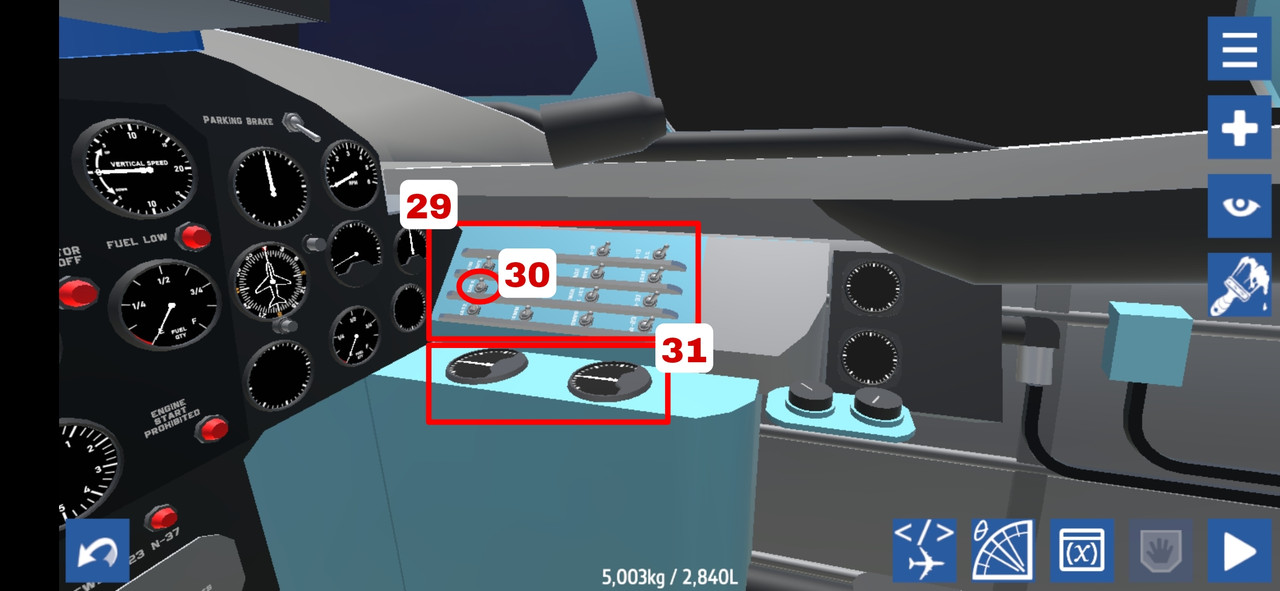

29.Right side circuit breaker
30.Generator circuit breaker
31.Hydraulic pressure gauges

Startup:

Right side circuit breaker: All switches ON except for GENERATOR
Left side circuit breaker: All switches ON
Parking brake: ON
Starter: Cover up and hold STARTER for at least 3 seconds
Control Surfaces: Check
Battery: OFF
Generator: ON
Canopy: Closed

Takeoff:

VTOL: 50% down
Throttle:100%
Rotation: At 250km/h ~

Combat:

N-37,Nr-23,bombs circuit breakers: Check
Bombs: armed
Cannons: On

Landing:

(flight model is messed up. It's better to land without flaps if you don't want to bounce and/or do a cartwheel)
Approach speed: 230-250km/h
Touchdowns speed: 220km/h ~

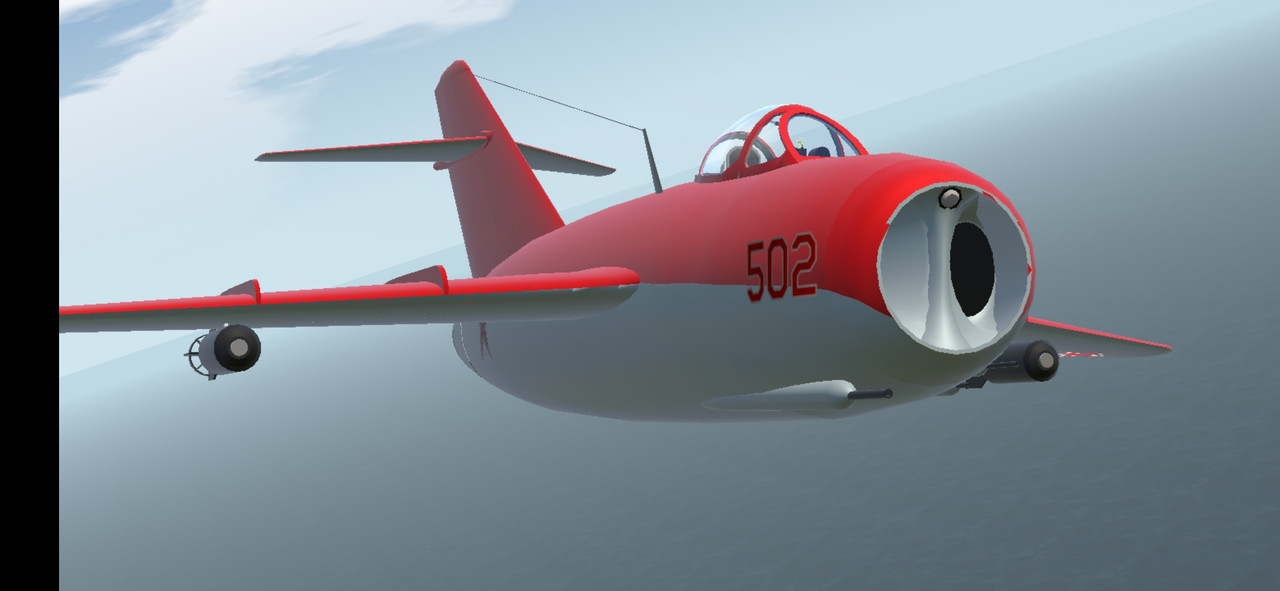

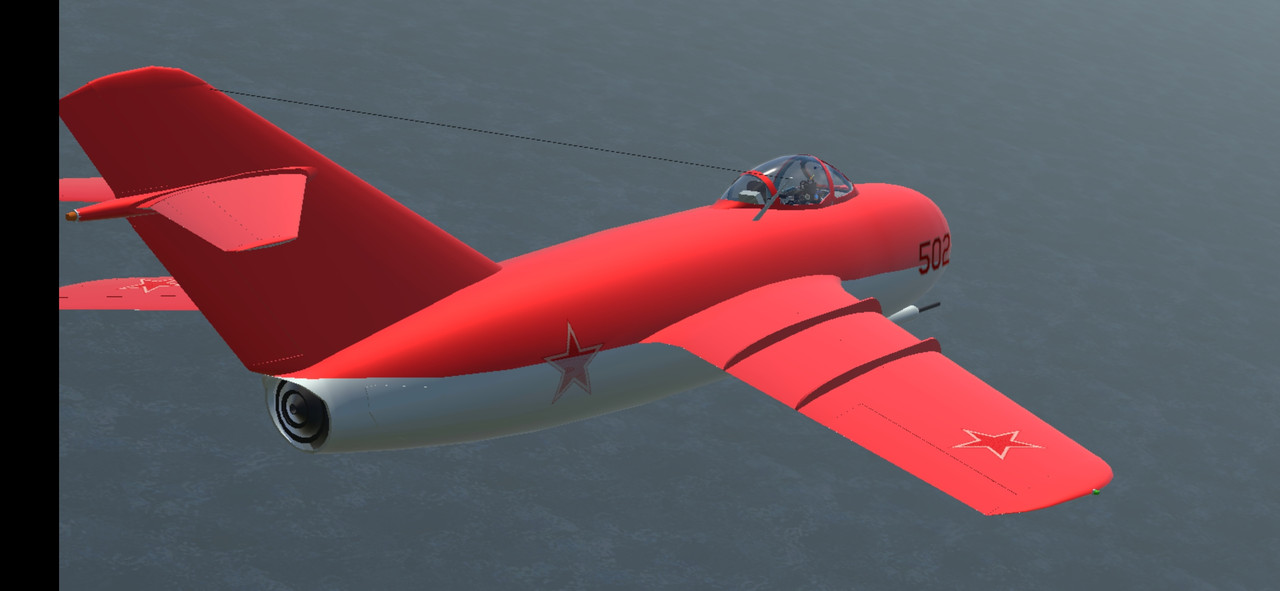

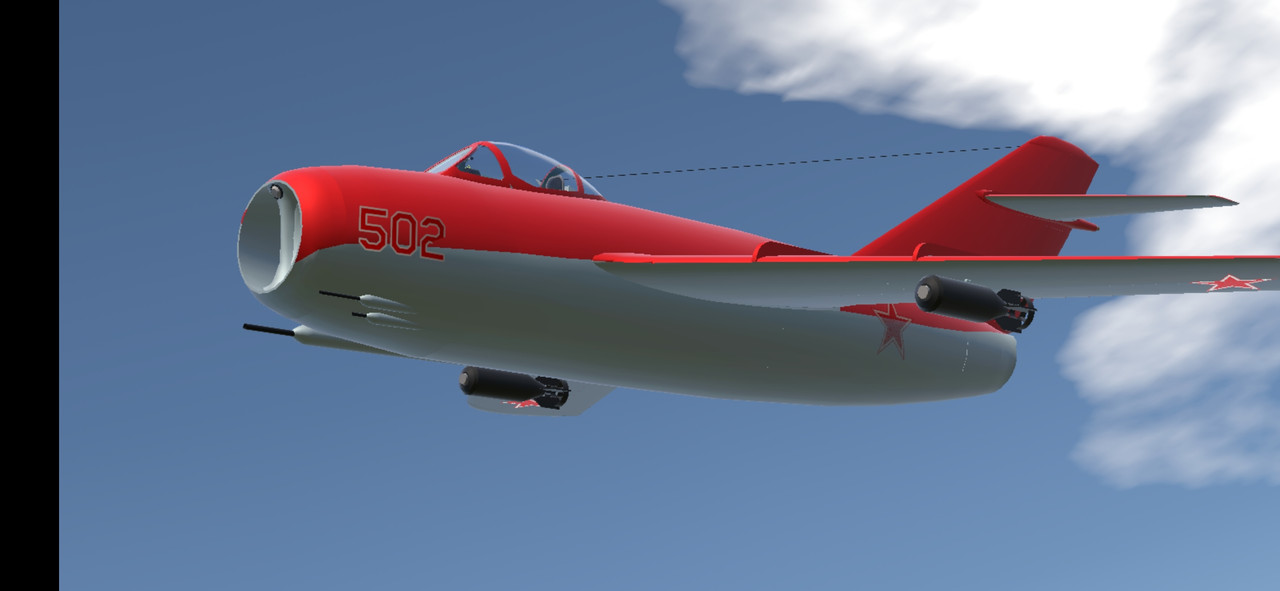

Gallery:

click image for source

I'll get to posting the polish and Chinese versions later

Authors note:

It's been a year since my first build on this site, I've come so far haven't I?
It's been 4 months since my last build but I promise I've been working on stuff (fictional fighter, A7E, B727, ov-10, OS2U). I got into guitar but I hurt my hand cuz I don't know how to play.

09/03/25
