Nippon Railways KiHa T100
Turbine multiple unit
Rank: III

USER MANUAL

CONTROLS

Yaw LEFT: Gear 1
Yaw RIGHT: Gear 2
VTOL UP: Brake
VTOL DOWN: Power

AG1: (none)
AG2: Engine brake
AG3: (none)
AG4: Wipers
AG5: Open left boarding doors
AG6: Open right boarding doors
AG7: Reverse light mode
AG8: (none)

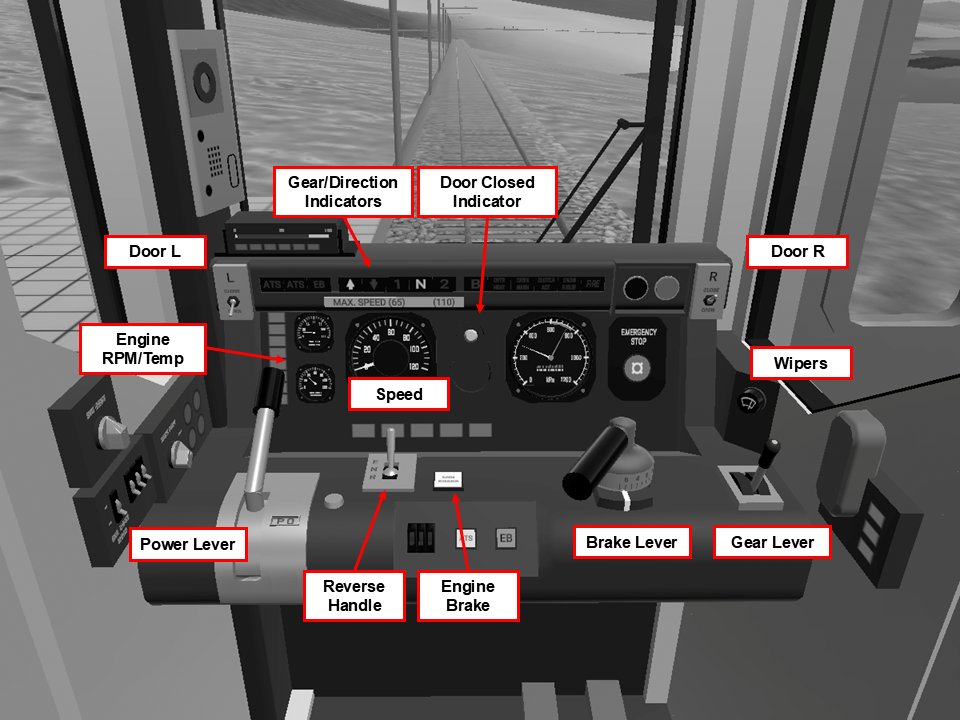

Basic cockpit controls and indicators

DRIVING

Use VTOL as a master control lever for both power and brakes. Alternatively, separate power and brake levers are available in the cabin. There are 8 levels of power and brake application each, plus a cutoff position.

Start with P4 in 1st gear or P8 in 2nd gear. The speed limits are 65 km/h in 1st gear and 110 km/h in second gear. Operation completely in 2nd gear is possible and still fast under low loads.

The engine brake can provide deceleration at medium and high speeds when enabled. Normally, the clutch is disengaged when the throttle is cut. When using the engine brake, the clutch will not be disengaged, except at low RPMs.

The gear indicators ([1], [N], [2]) above the dashboard show the status of the transmission and may not reflect the chosen gear at times.

DOORS

Opening the doors:
Stop the train and apply brakes of B2 or greater to unlock the doors. If this is not done, the doors will remain closed.
Afterwards, you can use the door switches to open the doors.
When the doors are open, power cannot be applied.

Closing the doors:
Use the door switches. You may apply power only after the doors are closed.

EMERGENCY STOP

If the emergency stop button is used, put the controls into P0 and B8 and wait for the train to stop. Once all three conditions are met, the emergency stop state will be reset and you can continue.

DEV NOTES

Funky train based on KiHa 100. Minor visual details have been changed. The post expands on the setting of the Second Jet Age.

There is a little bit of something like panelling (remember that old technique? *turns into dust*).

Since this is specifically intended to be a one-car post, I can put more parts into it. I originally made this to maybe enter the 500-parts VR challenge, but it won't happen. The project operation time (excludes planning) was about 9 days, which is very fast.

KiHa 100 interior materials:
Control panel
Interior

Interesting sites of unknown reliability:
Private Sendai Transportation Heritage Museum (does not work on Chromium-based browsers)
==> how a DMU works
turbo train

Other:
Old mystery sketch also based on the KiHa 100

INFORMATION

The KiHa T100 is a gas turbine multiple unit designed for use on rural railway lines. While attempting to replace their prewar DMUs, gas turbines, which had suddenly increased in popularity, were tested by Nippon Railways East. Following the production of several prototype models, a small fleet of KiHa T100-0 series TMUs (turbine multiple units) were built to evaluate the feasibility of using gas turbines for revenue service.

Information (KiHa T100-0 series):
Operator: Nippon Railways East
Manufacturing period: 2052-2054
Body construction: All stainless steel
Bogies: Bolsterless
Powerplant: Yamashiro Heavy Industries T/T02-600 (560 PS continuous output)
Acceleration: 3.1 km/h/s
Deceleration: 3.6 km/h/s (service), 4.6 km/h/s (emergency)
Maximum speed: 110 km/h
Length: 19,500 mm
Width: 2,980 mm
Height: 4,100 mm
Mass: 25.2-27.2 t

The test run models used a compact powerplant and transmission designed by Yamashiro Heavy Industries. An engine with a maximum output of 600 PS was connected to a two-speed gearbox before a final connection to the drive bogie. Due to the available output, the KiHa 100 had an acceleration similar to EMUs when run by itself. Alternatively, it could be run with a passenger trailer for higher fuel efficiency.

The trial run found that with the efficiency and reliability brought about from recent technological advancements, new TMUs can now be made profitable enough to compete with prewar DMUs. However, TMUs have not proven to be superior to their diesel and battery-electric counterparts at this time, and the three forms of train cars are forced to compete in a gradually shrinking market of non-electrified lines.

Example vehicle
This vehicle uses a typical interior layout for local services on rural lines. It is equipped with a universal access toilet.
