AMF Poukai Weapon Set

9,696 RX9115S  15 days ago

"As Above, So Below..."

ABOUT THIS PLANE:

AMF Poukai is my original 4th Gen. Fighter named after the mythical bird of Maori mythology which is believed to be based on a Haast’s Eagle. This Plane is based on the IML Addax S which is a very cool concept plane incorporating unconventional design too bad it wasn’t funded and didn’t come to fruition. And, as I couldn't find similar planes on SimplPlanes incorporating its design philosophy I decided to try and replicate it, however, looking at the Addax S Blueprint it has a complex shaped fuselage and that’s when I decided to make this plane an original and kept it simple and true to SimplePlanes without too much XML modification. So here we are with a Flying Ekranoplane with STOL Capability!

If you ever see a good build in SimplePlanes resembling an IML Addax S. Give me a Tag!

AIRCRAFT DESCRIPTION:

AMF Poukai is a Lightweight 4th Gen. STOL Amphibious Multirole Fighter (AMF). It utilizes a unique upper surface blowing (USB) and Self-Stabilizing Aerofoil (SSA) design, making it capable of Short TakeOffs and Landings (STOL). Also, its unique fuselage shape enables it to perform missions on water, turning it into an Ekranoplane for Extended Range or a Seaplane, depending on the mission parameters. Nothing is safe from this predator, anywhere it may be.

PLAYSET CONTENTS:

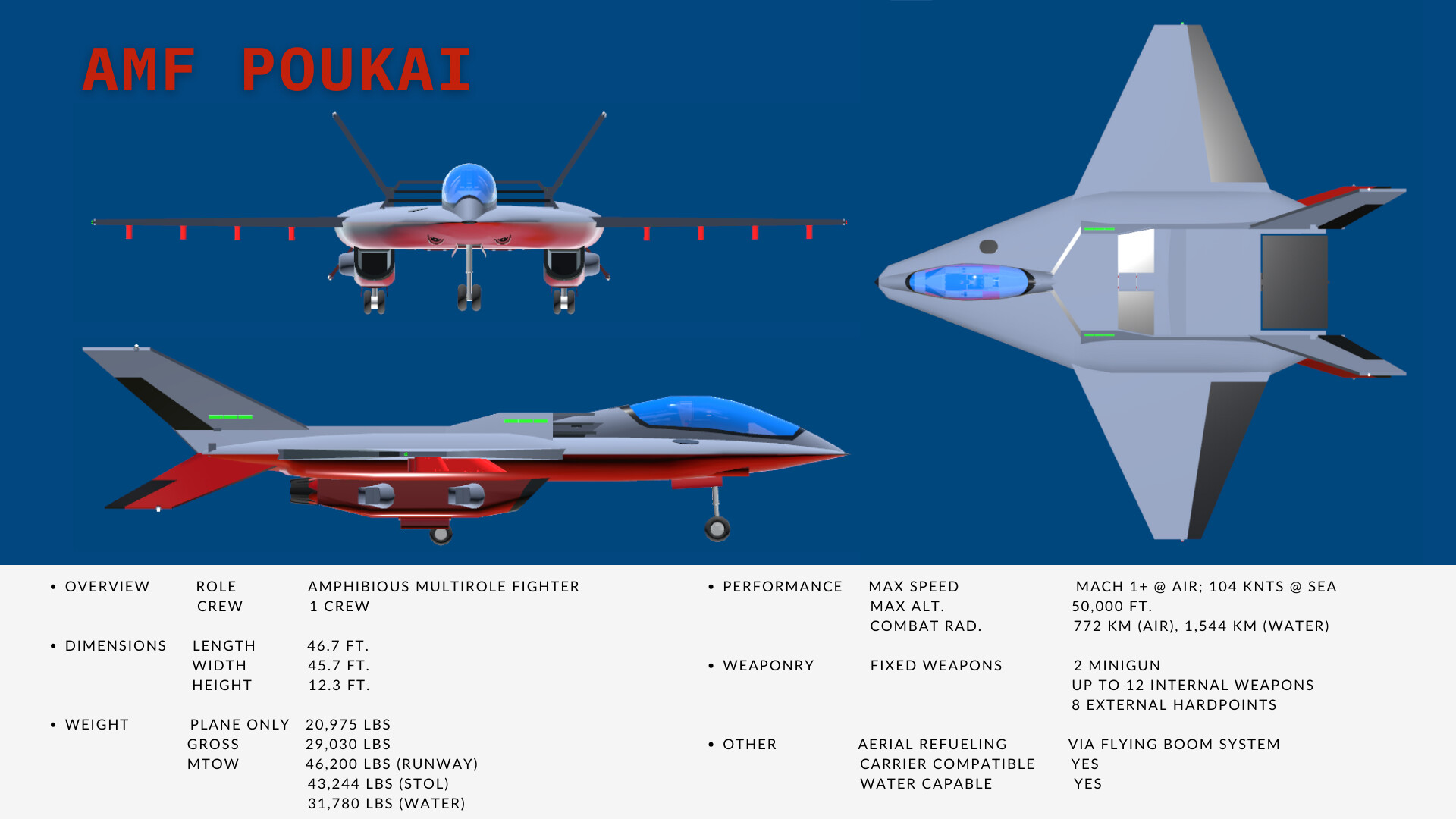

SPECIFICATIONS:

FEATURES:

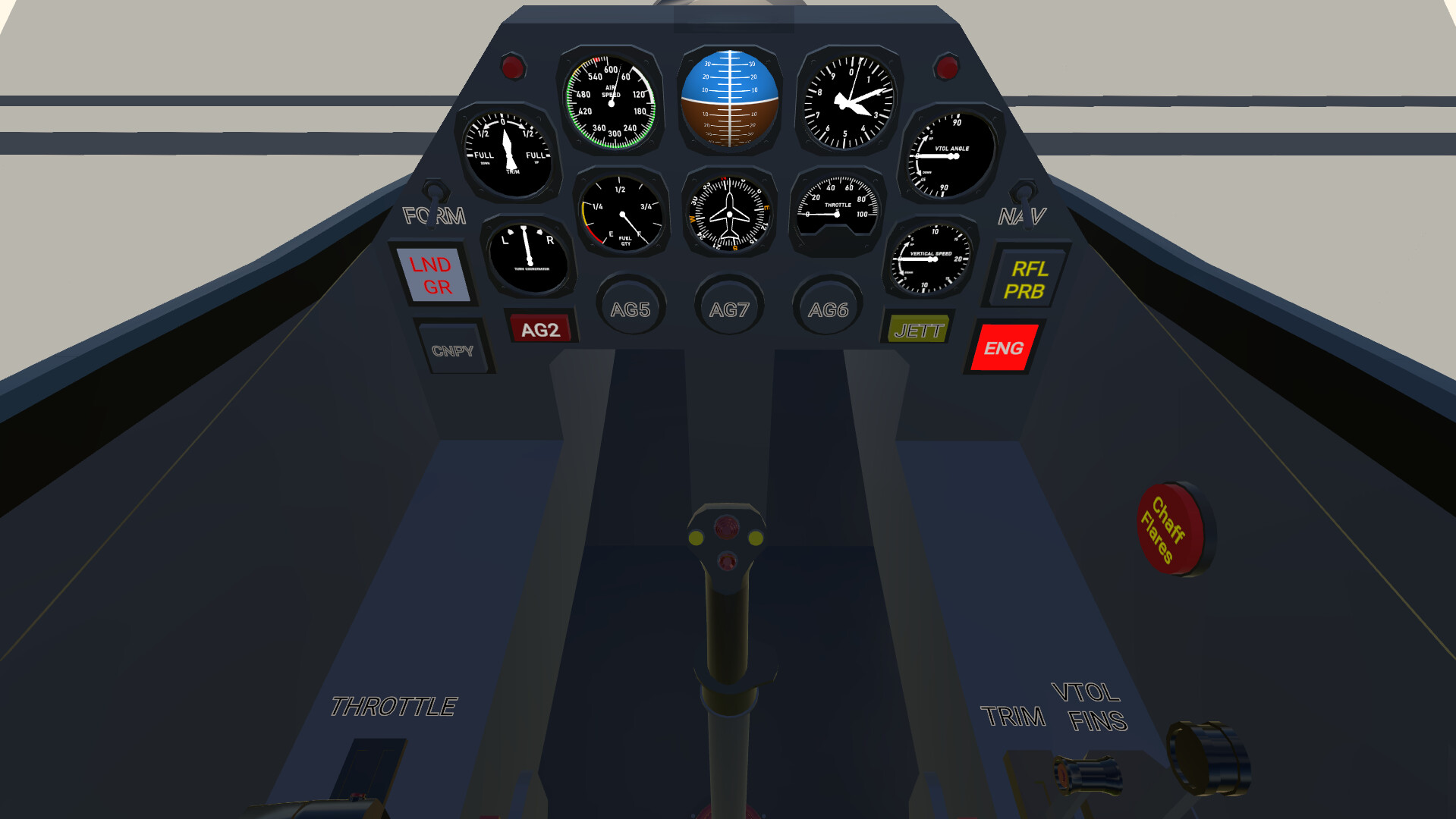

- Simple Cockpit Interior

- Airborne Refueling

- Water Capable

- Short Takeoff and Landing (STOL) Capability

Credits:
Controls:
  • AG1 = Canopy
  • AG2 = Master Arm & Internal Weapons Bay (Internal Weapons Bay only opens when Unguided Weapons are Selected or a Target is Locked)
  • AG3 = Jettison External Pylons
  • AG4 = Refuel Probe
  • AG5 = Formation Lights
  • AG6 = Navigation Lights
  • AG7 = Jettison Drop Tanks (Reserved For Pylons with Drop Tanks)
  • AG8 = Engines

VTOL = Fin and VTOL Nozzle Control For Take-Off / Landing Sequence
TRIM = Trim

NOTES:

TAKEOFF & LANDING / STOL / REFUEL:
// Stall Speed: TAS < 140 MPH

// Runway TakeOff:
25% to 100% Throttle,
Max to 25% VTOL,
Rotate at 150+ MPH

// Runway Landing:
20% Throttle,
Keep TAS > 150 MPH

// Short Take-Off:
70% to 100% Throttle,
100% to 55% VTOL,
Rotate at 70+ MPH

// Short Landing:
10% Throttle + Max VTOL,
Keep TAS > 140 MPH

// Water Take-Off:
Max Throttle,
Speed up to 100+ MPH
At 100+ MPH,
75% to Max VTOL Up
as you Rotate

// Airborne Refuel: 25% Throttle

  • If you are going to put missiles internally, add an ignitionDelay of 0.5 using Overload XML Editor; otherwise you'll go BOOM!

  • Ordnance Colors are in the 3rd Row of the Paint Tool.

  • This Aircraft is compatible with the other Liveries featured in the Paint Tool!

  • Weapon Capacity is only limited by Max TakeOff Weight, as long as the weapons don't touch other aircraft parts!

  • EXTERNAL BUOYANT DROP TANKS are Necessary when Exceeding WATER MTOW. Otherwise, You'll be stuck being an Ekranoplane.


P.S It has very poor maneuverability on water and doesn't reverse!

HAVE FUN! AND ENJOY!
