Czechoslovak medium bomber prototype, based on airliner A-204.
Aircraft was presented in 1936 for the first time and production was planned after 1938. Project was canceled because of the German occupation.

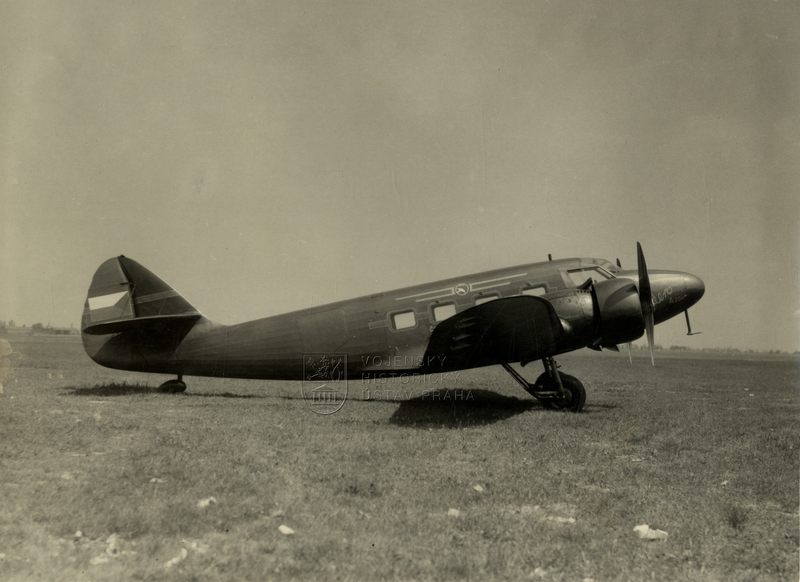

A-204
One prototype was made, which was sadly destroyed after a crash landing by German pilot.
There were supposed to be 3 variants of this aircraft. The first one should had a range of 900km with 500-1000kg of bombs. The second one should be capable of delivering 900kg of bombs up to 1400km radius. The last version was reconnaissance with a range of 1800-2200km
Plane was also intended to be armed with 3 7.62mm machine guns vz.30.
Controls:
VTOL down - flaps
Trim - trim
A1 - open/close bomb bay
A2 - open/close belly gunner doors
A3 - left engine
A4 - right engine
A5 - drop all bombs
A7 - position lights
A8 - open doors
Specifications
Spotlights
- Trainzo 4 months ago
- Ownedpilot 4 months ago
- ThomasRoderick 4 months ago
- NINJ4 4 months ago
- MrOofington 4 months ago
- Jaspy190 4 months ago
- MobileBuilder21 4 months ago
- CCCP0000001 4 months ago
- WinsWings 4 months ago
- ManWithAMusket 4 months ago
- Zerkk 4 months ago
- Kenzar 4 months ago
- Rb2h 4 months ago
- TheNewSPplayer 4 months ago
- Elevey 4 months ago
- NormalCv580enjoyer 4 months ago
- Apollo018362 4 months ago
- Christiant2 4 months ago
- PrussianAirlines 4 months ago
General Characteristics
- Predecessor 1930-1940s Challenge [CLOSED]
- Created On Windows
- Wingspan 60.8ft (18.5m)
- Length 44.1ft (13.4m)
- Height 14.3ft (4.4m)
- Empty Weight 13,286lbs (6,026kg)
- Loaded Weight 17,662lbs (8,011kg)
Performance
- Horse Power/Weight Ratio 0.096
- Wing Loading 33.6lbs/ft2 (164.1kg/m2)
- Wing Area 525.4ft2 (48.8m2)
- Drag Points 3529
Parts
- Number of Parts 442
- Control Surfaces 10
- Performance Cost 2,249
Looks 10
Performance-10
Description 3
Personal-8
Coolness 8
39/40
