This plane is built to get myself familiar with most of the features added to the simpleplanes after I stayed away from the game for more than 3 years. During those years, I have schools and other games to play. In addition, beautiful works of other people made me hesitant to make anything since I am afraid I cannot meet up with the standards they are setting. After becoming a PhD student, I wanted a plane that can help me practice programming flight controllers. Therefore, I decided to build an F-15E from ground up using designer suite and modify it into S/MTD configuration. The only problem is I seems to have suffered feature creep when building this plane which leads to up to 70 hours of work being put into it.
Unlike the F-15 S/MTD, its canard came from F/A-18 E/F which is a lot larger than F/A-18 A/C. This change made the plane a lot more unstable than the F-15 S/MTD. In addition, it features F-100-PW-232 engine with P/YBBN nozzle. This made the aircraft extremely heavy but still incredibly maneuverable. The flight control system was programmed with simple state feedbacks. In normal flight conditions, the flight control system would limit the angle of attack to prevent main wing stalling and optimize lift during maneuvers. Disabling the angle of attack feedback would allow the plane to perform post stall maneuvers (PSM) when the speed is below 450km/h. The excellent nose authority during the PSM is sufficient for performing a gun kill on enemy. In the future, the plane would be fitted with adaptive control system with learning capability. However, such control scheme would not be ready in at least a year. The desired goal is to recreate some of the results from the S/MTD program and improving on those results if possible.
Instructions:
Normal Control:
Trim: Trim
VTOL: Nothing Yet
AG1: Nothing Yet
AG2: Lights
AG3: Jettison Drop Tanks
AG4: Canopy
Emergency Control:
AG5: Jettison All Weapon
AG6: Arrester Hook
AG7: Eject
AG8: AOA Feedback (Fun switch)
Special Thanks:

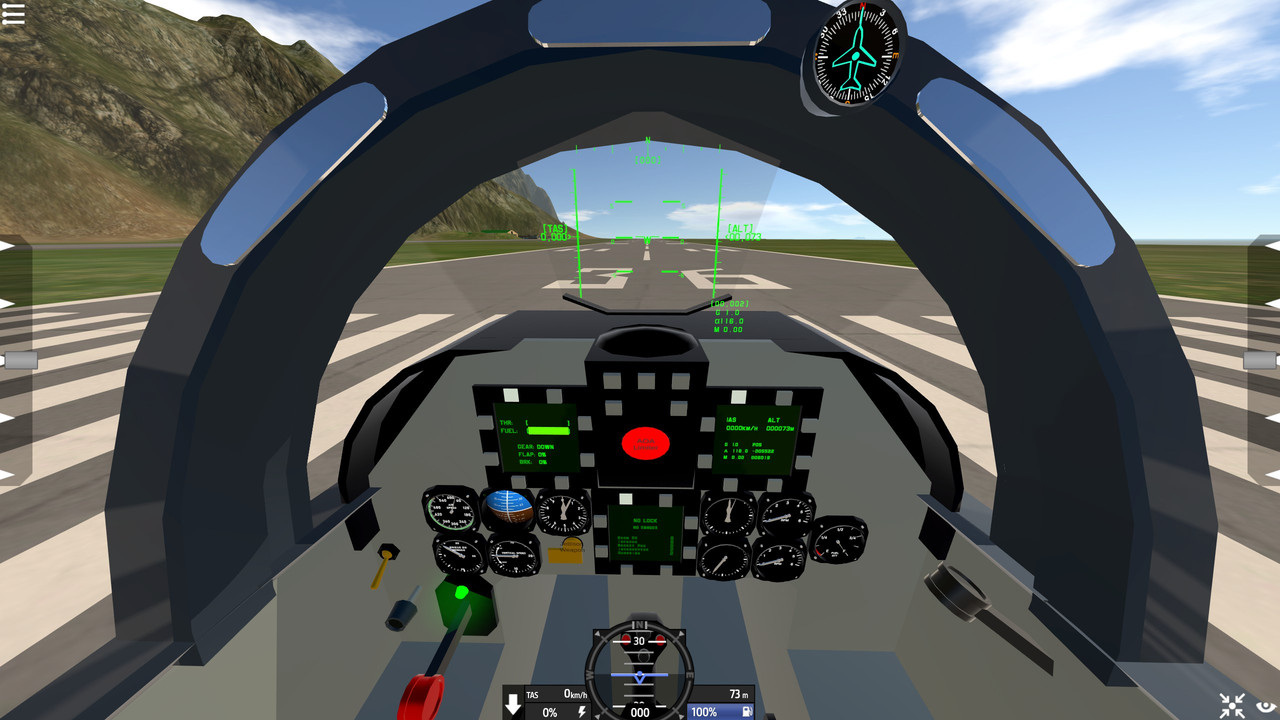

@PlanariaLab for his 1 part HUD
@WNP78 for his display panels on stock planes and all his work on this game
@JohnnyBoythePilot for his realistic stock missiles
@TheCommentaryGuy for the low visibility USAF emblem
Hope you enjoy!

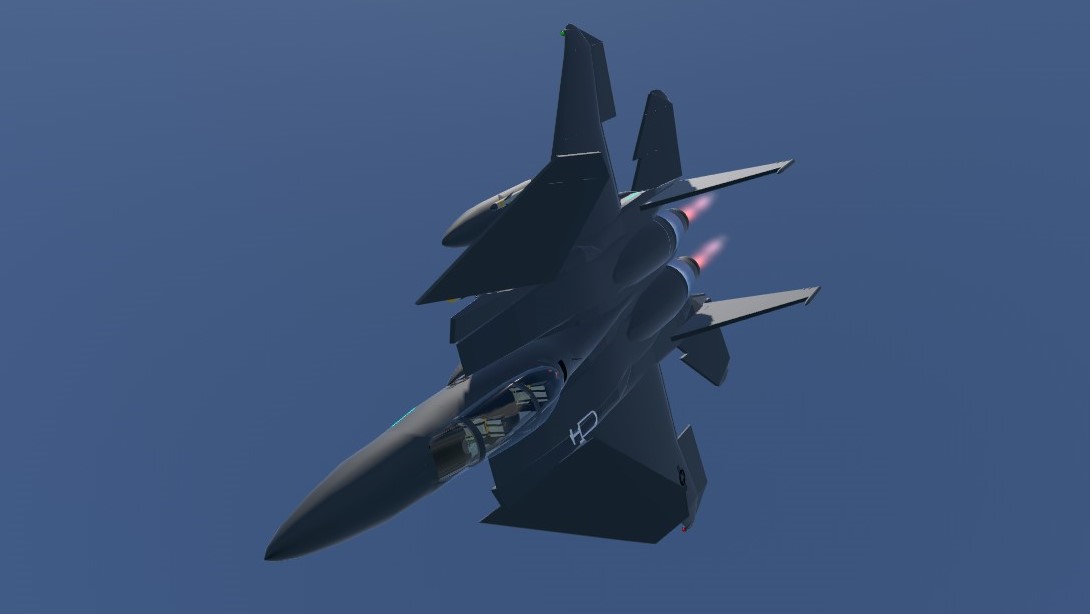

Some Pics
Specifications
Spotlights
- Freerider2142 2.0 years ago
- VeryUnprofession 1.9 years ago
- Zaineman 1.9 years ago
- Rjenteissussy 1.9 years ago
- LunarEclipseSP 4 months ago
General Characteristics
- Successors 1 airplane(s)
- Created On Windows
- Wingspan 41.6ft (12.7m)
- Length 62.6ft (19.1m)
- Height 18.6ft (5.7m)
- Empty Weight 44,884lbs (20,359kg)
- Loaded Weight 73,796lbs (33,473kg)
Performance
- Power/Weight Ratio 0.746
- Wing Loading 101.2lbs/ft2 (494.2kg/m2)
- Wing Area 729.0ft2 (67.7m2)
- Drag Points 3556
Parts
- Number of Parts 582
- Control Surfaces 6
- Performance Cost 2,423
